replacing floor in 18ft boat side console

Sort posts by date: Descending Ascending

Original Post:

shakey47
See Profile
Profile
Level: General User
Joined: 7/15/2005
Status: Offline
1/20/12 1:03 PM CST
my boat is a 84 sea nymph its pretyy good condition cept the seat post went and busted out where it goes into the floor ,and i thought i could just replace it but no i cant screws just spin. firgure there are nuts holding them on...so how hard is to replace the floor in boat ? what kind of wood and how thick..i thought id just use 5/8thick pywwod and treat it or recarpet it..im hoping i dont have to tear it all out...that would suck...any help be apperciated

Boatdoctor
See Profile
Profile
Level: General User
Joined: 12/3/2005
Status: Offline
2/1/12 2:51 PM CST
Looks great. It is nice seeing the completed product, knowing it was all by your doing.

Smooth
See Profile
Profile
Level: General User
Joined: 1/1/2008
Status: Offline
2/1/12 10:06 AM CST
Couple more, im done now

Smooth
See Profile
Profile
Level: General User
Joined: 1/1/2008
Status: Offline
2/1/12 9:59 AM CST
After

Smooth
See Profile
Profile
Level: General User
Joined: 1/1/2008
Status: Offline
2/1/12 9:56 AM CST
I feel your pain. Its not as bad as it seems, quite enjoyable actually. I used 1/2 treated plywood. There is a lot of bracing in this basstracker so im not worried about sagging. Your application may differ. Heres some before and after pics.

Boatdoctor
See Profile
Profile
Level: General User
Joined: 12/3/2005
Status: Offline
1/27/12 7:48 PM CST
shakey47-

If you can't find treated 5/8", just use a high quality exterior plywood to start. Once you cut it to shape and it's dry fit, then seal it in fiberglass resin. This will outlast the aluminum hull I assure you.

You can get a gallon of resin and hardener at most big box hardware stores.

You can save ordering time this way plus overall cost. Also you'd have to cut a "marine grade" board anyway. This exposes new material, making areas to invite rotting. Then you'd have to seal those areas.

I updated my website, so there's a bunch of pics of my past work.

http://www.anchormarineservice.com/photos.html

Boatdoctor
See Profile
Profile
Level: General User
Joined: 12/3/2005
Status: Offline
1/24/12 5:18 PM CST

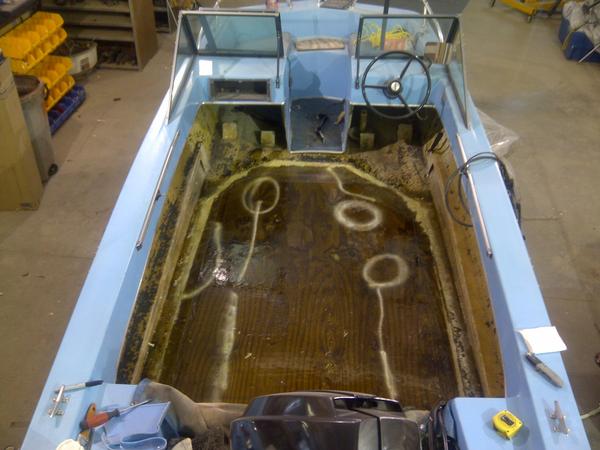

I've tried to attach some pics of a fiberglass boat I put a new floor in, 2 years ago.

You can use a 2 part liquid foam to adhere the wood to the ribs. It's about $60 per cubic foot, but ideal for floatation and adhesion.

The spray paint circles and line were to indicate where it was left vacant of foam because of the odd way the ribs were laid out.

Otherwise that's all foam underneath. You couldn't remove that board if you had to.

[This post was last edited on 1/24/12 at 5:26 PM]
LodidoL
LodidoL
Level: General User
Joined: 1/12/2011
Status: Offline
1/24/12 1:48 PM CST
Doing the same thing to a 74 Starcraft right now. Pretty much the same hull design I believe. Problem I'm gonna run into, is the floor has been replaced twice before. Where the plywood meets the ribs, there are too many holes to re-pop rivet again....Any ideas?

RiverGuy
See Profile
Profile
Level: General User
Joined: 6/20/2003
Status: Offline
1/23/12 11:49 PM CST
BD- I'm not on FB but appreciate your insight and tremendous experience. Good stuff and well done man. Please post any pics. Many guys will benefit from it.

Boatdoctor
See Profile
Profile
Level: General User
Joined: 12/3/2005
Status: Offline
1/20/12 6:42 PM CST
Hi

I do a fair amount of floors every year. As long as you have some above average carpentry skills, you'll be good.

The wood thickness depends on what was in there initially.Use the same that came out. You can run into weight or strength problems if you change the thickness. This link will get you to my Facebook page. I have just started putting pics up of my past work. Further questions, feel free.

https://www.facebook.com/pages/Anchor-Marine-Repair-LLC/100928749988655
